CNC lock hole & hinge slotting machine for door industry
Dettagli:
| Place of Origin: | China |
| Marca: | Easwon |
| Certificazione: | CE |
| Model Number: | MDK4120 |
Termini di pagamento e spedizione:
| Minimum Order Quantity: | 1 set |
|---|---|
| Prezzo: | negotiated |
| Packaging Details: | wooden case |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 set per month |
|
Informazioni dettagliate |
|||
| Model no: | MDK4120 | Working length: | 1800-2500mm |
|---|---|---|---|
| Working width: | 600-1100mm | Max. moving distance of worktable: | 400mm |
| Working thickness: | 60mm | Motor power: | 17.6kw |
| Max. moving speed of tool: | 8m/min | Condition: | new |
| Warranty: | 1 year | ||
Descrizione di prodotto

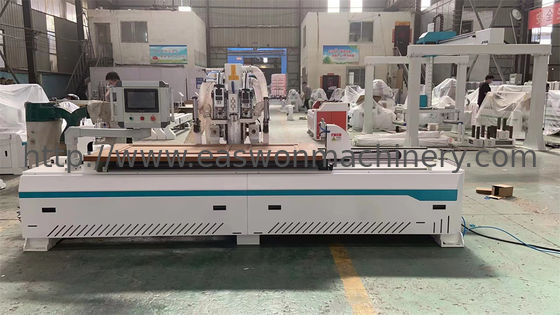

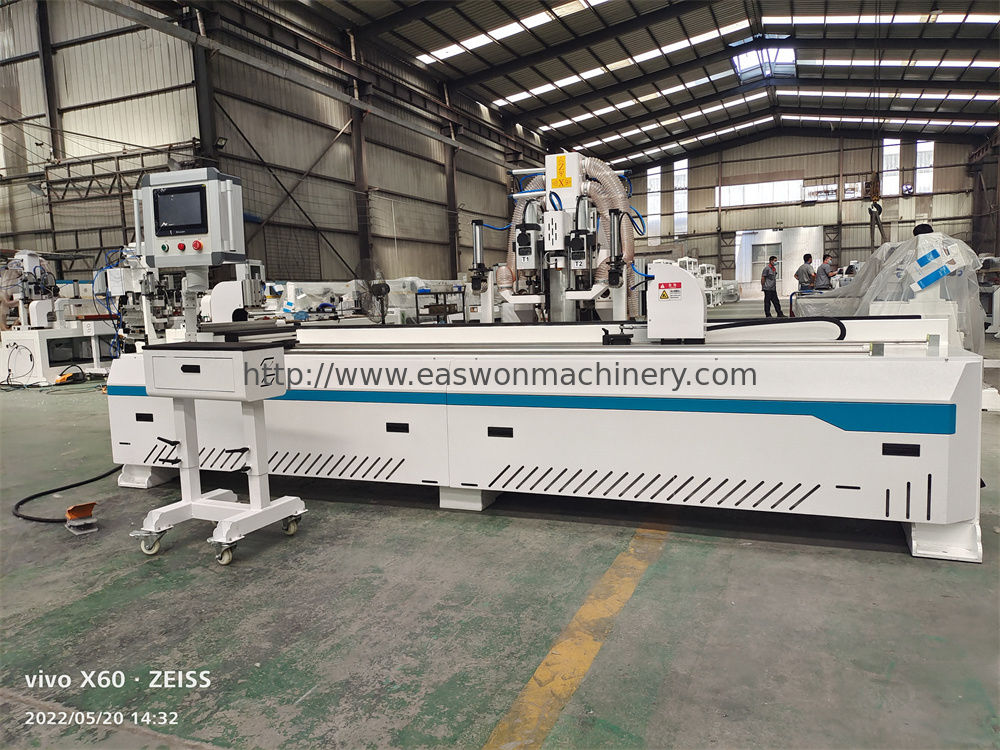

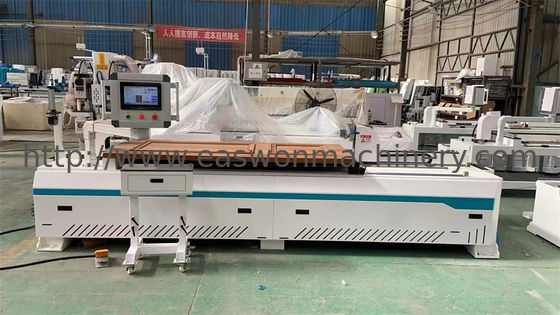

MDK4120 CNC lock hole & hinge slotting machine
This machine works for all kinds of lock-holes, lock-slots, lock side-steps and hinge-slots on door leaf at one working cycle, which can increase the quality and production capacity for door manufacturers.
Specification:
| +Door panel length: 1.8m to 2.5m +Spindle: 3 pcs of 4.5KW, 1 pc of 2.2KW +Y-axis travel: 190mm +Press material thickness: 60mm +Servo motor:750W*2/400W*1 +Reducer: Domestic high-precision speed reducer +Transmission mode: rack transmission +Lathe bed guide rail: X axis 25, Y axis 25, Z axis 20 +Functions: hinges, door closers, paint holes, hinge holes, various special shapes, various door locks +Packing: 3800*2000*2100mm(1000kg) |
CNC lock hole and hinge slotting machine details:
|
|
|||
Package and shipping:
The CNC lock and hinge slotting machine is packed by plywood case, which is suitable for FCL and LCL shipping.
 |
|
After sales services:
1. Warranty: 1 year
2. Lifetime upgrades and consulting services
3. 24-hour servic hot line for consulting and solving the problems
4. Provide product design and solution within 24 hours
5. Supply operational manual and maintance manual in English.
